ESD Vinyl Flooring Tile

Statico

12 colors
Total thickness 2.0/3.0mm

Contact an expert

Technical specifications

Product Description

Vinyl roll
Expand to view more product features.

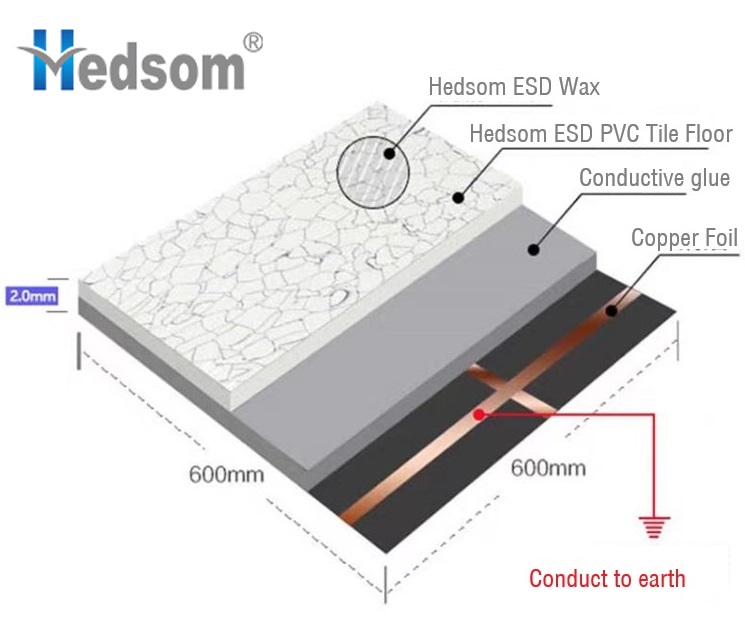

ESD flooring features a surface layer of anti-static PVC material, bonded with high-performance conductive adhesive to form a stable and continuous discharge channel, effectively eliminating the hazards of static electricity. It is particularly suitable for environments such as data centers, laboratories, and electronic workshops. The product combines durability with practicality, offering wear resistance, stain resistance, easy cleaning, as well as simple installation and maintenance.

ESD Vinyl tile is widely used in the cleaning room

Features

Excellent Anti-Static Performance: Utilizes conductive materials and special coatings to rapidly dissipate static electricity, with stable resistivity that prevents electrostatic accumulation.

Permanent and Stable Performance: The anti-static function of certain materials (e.g., PVC) is permanent, resistant to degradation from aging or wear.

High Load-Bearing and Wear Resistance: Offers exceptional load-bearing capacity and durability, suitable for high-traffic environments.

Easy Cleaning and Maintenance: Smooth surface with strong stain resistance for easy cleaning; certain materials can be sanded and restored.

Aesthetic Appeal: Available in various colors and patterns, featuring a marble-like appearance for excellent decorative effect.

Fire and Moisture Resistance: Provides good fire resistance (Class A/B1) and moisture-proof performance.

Eco-Friendly and Safe: Some products are free of radioactive elements, and the conductive network prevents harm to humans from electrostatic discharge.

Application Scenarios: Computer rooms, communication equipment rooms, cleanrooms, microelectronics workshops, laboratories, operating rooms, banks, post and telecommunications offices, etc.

Color Chart

Technical Data

Expand to view the main technical parameters.

Technical Data

ITEM	STANDARD	INDEX
SIZE	SJ/T11236-2020 ISO 24342{EN427}	600600mm 610610mm
THICKNESS	SJ/T11236-2020 ISO 24346{EN428}	2.0/3.0mm
ELECTRICAL RESISTANCE(Q)	SJ/T11236-2020 EN 1081	1.0104-1.010⁶ 104-10⁶	1.0106-1.0109 106-109
BOBYVOLTAGE	IEC 61340-4-5	<100V
	ANSIESD STM97.2	<100V
	EN 1815	<2KT
STATIC DECAY	GJB3007A-2009	≤2(Sec)
	Federal Test Method 1018 Method 4046	0.01sec	0.01sec
(1000r) RESISTANCE TO WEAR	SJ/T11236-2020	≤0.02g/cm²
	EN660-2	P
FIRE RESISTANCE	SJ/T11236-2020 GB8624-2012 ASTM E648-17 EN13501-1	FV-0 B₁ {B-S1,t0}Classl B-S1
DIMENSIONAL	ASTM F2199:09(2014 IOS 23999	≤0.25%
SLIP RESISTANCEWET	DIN51130	R9
RESIDUAL CONCAVITY	GB/T4085-2015 EN ISO24343-1	0.15<1R≤0.40mm ≤0.10mm
COLOR FASTNESS	ISO 105-B02	≥6
CHEMICAL PRODUCTS RESISTANCE	EN ISO 26987	ok
TOXIC TESING	GB 18586-2001 EN71-3	ok
TVOC After 28 Days	ISO 16000-6	<10μg/m³
